| Product Name： |
Temperature
     |
|
| Product #： |
MultiConCMC-141 |
| Clicks： |
2212 次 |
|
|
| Description： |
Digital industrial meters constitute the largest family of automation equipment, ranging from the simplest meters that are designed only to display basic parameters such as working status or physical quantities (temperature, level, pressure etc.), to more complex control units having a number of relay outputs. Depending on the type of measured signal or required sensor, these appliances can be equipped with inputs suitable for Pt100 temperature sensors or thermocouples of the K, S, J, T, N, R, B and E types. There are a variety of designs: enclosures of different sizes and with displays in various sizes, even wall-mounted or board-mounted enclosures, enabling the free selection of appliances while maintaining complete functional compatibility The additional option of current output, installed in a number of appliances, enables the easy retransmission of the measured parameter to systems equipped with PLC controllers, or, for example, to other meters. |
| Feature： |
The Multicon CMC are powerful and versatile compact-multichannel-controllers with a capability to record data, if the recording function is requested and activated. MultiCon CMC‑141 is our new project and it is CMC-99's bigger brother. It has all features included in CMC-99, but in addition it has a bigger display, more inputs/outputs and even more logic channels. Casing depth is still only 100 mm. Thanks to that it is one of the first industrial devices which integrates advanced control functions (PID, ON/OFF, time & profiles etc.) and logging of setpoints, excitations and current state of controlled objects. Based on Linux firmware, is stable and the touch screen makes configuration easy and comfortable and data presentation also readable and attractive. Although the Multicon CMC-141 is build in a quite small housing, it can integrate up to 72 inputs, and its construction allows user almost free configuration by choosing up to 3 from 30 available input/output modules. The device can simultanously record all build-in logical channels, and is capable to record data with maximum speed 10Hz (ten samples per second, with some limitation of number of recorded channels). 1.5GB of internal data memory is enough for continuous recording of all channels with a speed of 1 sample per second (each channel) for over 2 months (125 000 000 samples in total!). An operator can download stored data using a USB flash disk or via Ethernet.
|
| Specification： |
| Power supply |
19V ÷ 50V DC; 16V ÷ 35V AC or 85 ÷ 260V AC/DC |
| Input |
up to 15 universal inputs; 72 analogue inputs (0/4-20 mA or 0/1-5V or 0/2-10V) max.; 72 digital inputs max.; 36 thermocouple inputs max.; 18 RTD inputs max.; 18 counter/ flowmeter/ ratemeter inputs max.; 1 digital input 24V DC |
| Display |
5.7 inch graphic TFT, 16-bit colour, 320 x 240 pixels, with touchscreen |
| Measurement range |
depends on input |
| Power consumption |
typical 25 VA; max. 35 VA |
| Output |
18 analog (4-20 mA) or 36 relay (1A/250V) / 72 SSR outputs or 18 relay 5A/250V max., sensor supply: 24 V DC ± 5% (200 mA max. for current inputs) |
| Communication interface |
standard: RS-485 (Modbus RTU), 1 x USB Host, USB Device; enhanced version (incl. ACM module): 2 x RS-485, 1 x RS-485/232, 1 or 2 x USB Host, 1 x USB Device, 1 x Ethernet 10 MB |
| Internal memory capacity |
1,5 GB |
| Storage temperature |
-10°C ÷ +70°C |
| Operating temperature |
0°C ÷ +50°C |
| Protection class |
IP 65 (front), available options: additional frame IP 65 for panel cut-out sealing, transparent door STD-141; version with front USB: IP 40 or IP 54 (when fitted with STD-141 transparent door) |
| Case |
panel mounting |
| Case material |
NORYL - GFN2S E1 |
| Case dimensions |
144 x 144 x 100 mm |
| Panel cut-out dimensions |
137 x 137 mm |
| Software |
Free DAQ Manager software for multichannel controller can be downloaded directly from section „Download” |
| Installation depth |
min. 102 mm |
|

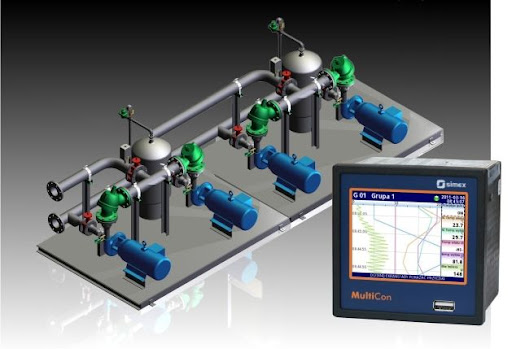

| Application： |
 |
