| 產品名稱： |
智慧型紅外溫度計

|
|
| 產品型號： |
Smart-IR-ZF |
| 點閱次數： |
7482 次 |
|
|
| 影片展示： |
|
| 說明： |
品名: 智慧型紅外溫度計
型號: SMART-IR-ZF
測量溫度: 0℃~400℃
測量波長: 8~14 um
距離 : 直徑 : 12 : 1
(ψ20mm at 400mm)
(ψ25mm at 500mm)
放射率: 0.95(固定式)
信號輸出: 4 ~20 mA
反應時間: 300 msec
電源: DC 24 V |
| 特色： |
|
| 規格： |
Spectral range 8 ~14 um
Distance:Spot Size = 12:1
Output Temperature range 0°C ~400°C(0.04mA/°C)/ 32°F~752°F(0.017mA/°F)
Analog output 4~20mA;linear to temperature;install independent current
Output impedance
100 Ohms;Max.Loop load:700 Ohms
Emissivity Fixed at 0.95
Response time 300 ms
Accuracy 2.0% of reading or 2.0°C/3.6 °F,whichever is greater
Repeatability
1% of measured value or 1°C/ 1.8°F,whichever is greater

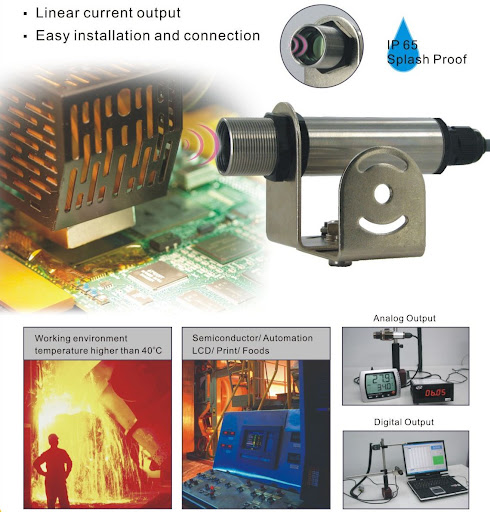

*Small and robust infrared temperature sensor
*2-wire installation
*Linear current output
*Easy installation and connection
*IP 65 Splash Proof |
| 應用： |
 紅外線高周波加熱_Fiber IR
|
